产品编号：102017415714
产品名称：英制蜗轮减速机
产品类别：蜗轮蜗杆减速机系列
产品型号：英制
24小时服务电话: 李先生 13951580222 方小姐 15251425679 郭小姐 15251425680 陈小姐 13812062323 谢小姐 18915322345
|
|
|
|
NEMA Frame
|
LA
|
LB
|
LC
|
LE
|
LZ
|
Input
|
|
Bore
|
Keyway
|
|
56C
|
5.875
|
4.50
|
6.50
|
0.16
|
0.43
|
0.625
|
3/16×3/32
|
|
143TC/145TC
|
5.875
|
4.50
|
6.50
|
0.16
|
0.43
|
0.875
|
3/16×3/32
|
|
182TC/184TC
|
7.250
|
8.50
|
9.00
|
0.23
|
0.55
|
1.125
|
1/4×1/8
|
|
213TC/215TC
|
7.250
|
8.50
|
9.00
|
0.23
|
0.55
|
1.375
|
5/16×5/32
|
|
254TC/256TC
|
7.250
|
8.50
|
10.00
|
0.23
|
0.55
|
1.625
|
3/8×3/16
|
|

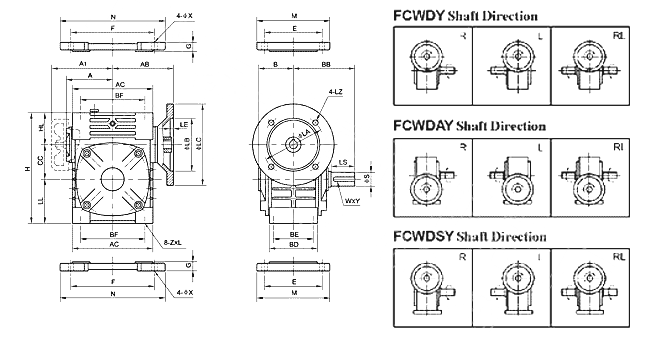

Size
|
Radio
|
A
|
A1
|
AB
|
AC
|
B
|
BB
|
BD
|
|
40
|
5：1
10：1
15：1
20：1
30：1
40：1
50：1
60：1
|
2.58
|
|
3.92
|
3.94
|
1.85
|
3.31
|
2.68
|
|
50
|
2.85
|
|
4.19
|
4.48
|
2.08
|
3.82
|
2.72
|
|
60
|
3.15
|
|
4.43
|
5.00
|
2.20
|
4.33
|
2.99
|
|
63
|
3.37
|
|
4.67
|
5.51
|
2.36
|
4.45
|
3.46
|
|
70
|
3.76
|
|
4.63
|
6.10
|
2.52
|
5.12
|
3.31
|
|
80
|
4.11
|
|
5.84
|
6.69
|
2.85
|
5.51
|
3.94
|
|
100
|
4.78
|
|
6.51
|
8.03
|
3.33
|
6.42
|
4.49
|
|
120
|
6.10
|
8.26
|
7.48
|
10.24
|
3.94
|
7.28
|
5.04
|
|
135
|
6.89
|
9.06
|
8.32
|
11.65
|
4.33
|
8.27
|
5.91
|
|
155
|
7.64
|
10.24
|
9.35
|
12.99
|
5.20
|
9.92
|
6.69
|
|
175
|
8.78
|
11.42
|
11.02
|
14.57
|
5.71
|
10.31
|
7.32
|
|
Size
|
BE
|
BF
|
CC
|
H
|
HL
|
LL
|
Z
|
L
|
|
40
|
2.13
|
3.15
|
1.575
|
5.00
|
1.34
|
2.09
|
5/16-18
|
0.63
|
|
50
|
1.97
|
3.54
|
1.969
|
5.91
|
1.38
|
2.56
|
5/16-18
|
0.63
|
|
60
|
2.13
|
3.94
|
2.362
|
6.97
|
1.65
|
2.95
|
3/8-16
|
0.75
|
|
63
|
2.69
|
4.87
|
2.480
|
7.32
|
1.89
|
2.95
|
3/8-16
|
0.75
|
|
70
|
2.56
|
4.92
|
2.756
|
8.46
|
2.16
|
3.54
|
3/8-16
|
0.75
|
|
80
|
2.76
|
5.51
|
3.150
|
9.84
|
2.56
|
4.13
|
3/8-16
|
0.75
|
|
100
|
3.54
|
7.09
|
3.937
|
12.20
|
3.15
|
5.12
|
1/2-13
|
0.94
|
|
120
|
3.94
|
8.66
|
4.724
|
14.57
|
3.74
|
6.10
|
1/2-13
|
0.94
|
|
135
|
4.33
|
10.24
|
5.315
|
16.73
|
4.13
|
7.28
|
5/8-11
|
1.13
|
|
155
|
4.72
|
11.02
|
6.102
|
18.15
|
4.05
|
7.99
|
5/8-11
|
1.13
|
|
175
|
5.51
|
12.60
|
6.890
|
20.51
|
4.84
|
8.78
|
3/4-10
|
1.38
|
|
Size
|
Output Shaft
|
With Horizontal Base
|
NEMA Frame
|
|
S
|
LS
|
W×Y
|
E
|
F
|
M
|
N
|
G
|
X
|
|
40
|
0.625
|
1.38
|
3/16×3/32
|
3.54
|
3.94
|
4.33
|
4.92
|
0.51
|
0.39
|
56C
|
|
50
|
0.750
|
1.57
|
3/16×3/32
|
3.74
|
4.33
|
4.72
|
5.51
|
0.59
|
0.43
|
56C、140TC
|
|
60
|
1.000
|
1.97
|
1/4×1/8
|
4.13
|
4.72
|
5.12
|
5.91
|
0.71
|
0.43
|
56C、140TC
|
|
63
|
1.000
|
1.97
|
1/4×1/8
|
4.33
|
5.91
|
5.51
|
7.09
|
0.71
|
0.43
|
56C、140TC
|
|
70
|
1.125
|
2.36
|
1/4×1/8
|
4.53
|
5.91
|
5.91
|
7.48
|
0.71
|
0.59
|
56C、140TC
|
|
80
|
1.375
|
2.56
|
5/16 5/32
|
5.31
|
7.09
|
6.69
|
8.66
|
0.71
|
0.59
|
56C、140TC、180TC
|
|
100
|
1.500
|
2.95
|
3/8×3/16
|
6.10
|
8.66
|
7.48
|
10.63
|
0.79
|
0.59
|
56C、140TC、180TC
|
|
120
|
1.750
|
3.35
|
3/8×3/16
|
7.09
|
10.24
|
9.06
|
12.60
|
0.98
|
0.71
|
180TC、210TC
|
|
135
|
2.250
|
3.74
|
1/2×1/4
|
7.87
|
11.42
|
9.84
|
13.78
|
1.18
|
0.71
|
180TC、210TC
|
|
155
|
2.500
|
4.33
|
5/8×5/16
|
8.66
|
12.60
|
11.02
|
14.96
|
1.26
|
0.79
|
180TC、210TC
|
|
175
|
2.750
|
4.33
|
5/8 5/16
|
9.84
|
13.78
|
12.20
|
16.14
|
1.46
|
0.79
|
180TC、210TC、250TC
|
|
|
|
